Casting & Molding Services
At Craftcloud, we offer expert casting and molding services, including vacuum casting,
injection molding, and other advanced technologies.
We can deliver everything from high-quality one-off prototypes to small-series
to large-scale production in collaboration with our global manufacturing network.
Trusted by leading industry professionals since 2017
Custom Solutions for Every Need
At Craftcloud, we want to offer a variety of manufacturing solutions so that, no matter what your goal is or how big or small your project is, you can turn to us and our network of partners to support you.
In addition to 3D printing, CNC machining, and sheet metal fabrication, we offer specialized casting and molding services, perfect for a range of applications.
Whether you're looking for detailed plastic molds for product prototypes, intricate metal casts for automotive parts, or custom components for product design, our team is equipped to handle it.
We work closely with you to understand your needs, making sure each project is met with precision and care. From small-scale productions to large-volume industrial runs, Craftcloud is dedicated to turning your specific ideas into high-quality, tangible results.
What Are Casting & Molding?
Casting and molding are manufacturing processes typically used to produce larger quantities of finished products.

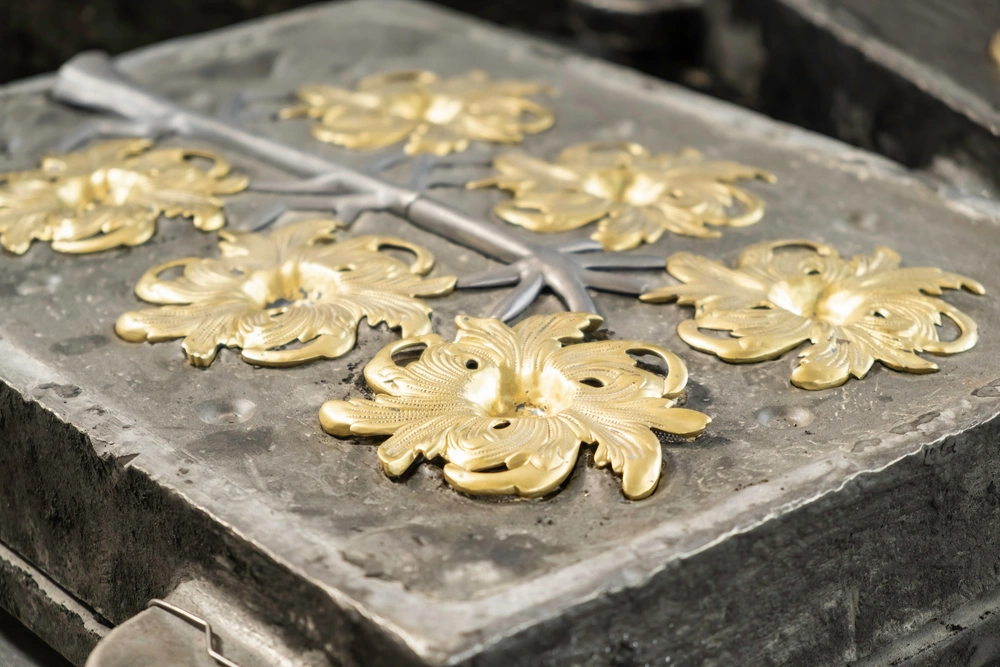

Casting involves pouring liquid material, like metal, plastic, or glass, into a mold, where it solidifies into the mold's shape.
Meanwhile, molding typically uses a solid material that is heated and then shaped in a mold, which is often used for plastics and composites.
Both processes are crucial for creating a wide range of products, from intricate components used in machinery to everyday items like plastic bottles and metal tools.
Because both casting and molding technologies require to first manufacture a mold, these technologies are often more expensive than 3D printing when quantities are low. However, molding and casting are often the faster and more economical choices for larger volumes.
The main casting and molding techniques include:
- Vacuum casting: A liquid material is drawn into a mold using a vacuum.
- Die casting: Molten metal is forced under high pressure into mold cavities.
- Injection molding: Melted plastic (or, in some cases, metal) is injected into a mold, solidifying it into the desired shape.
- Compression molding: A material, often thermoset plastics or rubber, is shaped by heating and pressing it into the mold.
The Processes
Each technique offers distinct advantages catering to varied manufacturing objectives.
Vacuum Casting
Vacuum casting uses a master pattern to create a flexible silicone mold, which is then filled with polyurethane resins under a vacuum to produce high-fidelity parts.
It is the best use case for low-volume production runs (typically 10 to 50 parts), high-quality visual prototypes for marketing, and pre-series testing where material performance is critical before committing to mass production.

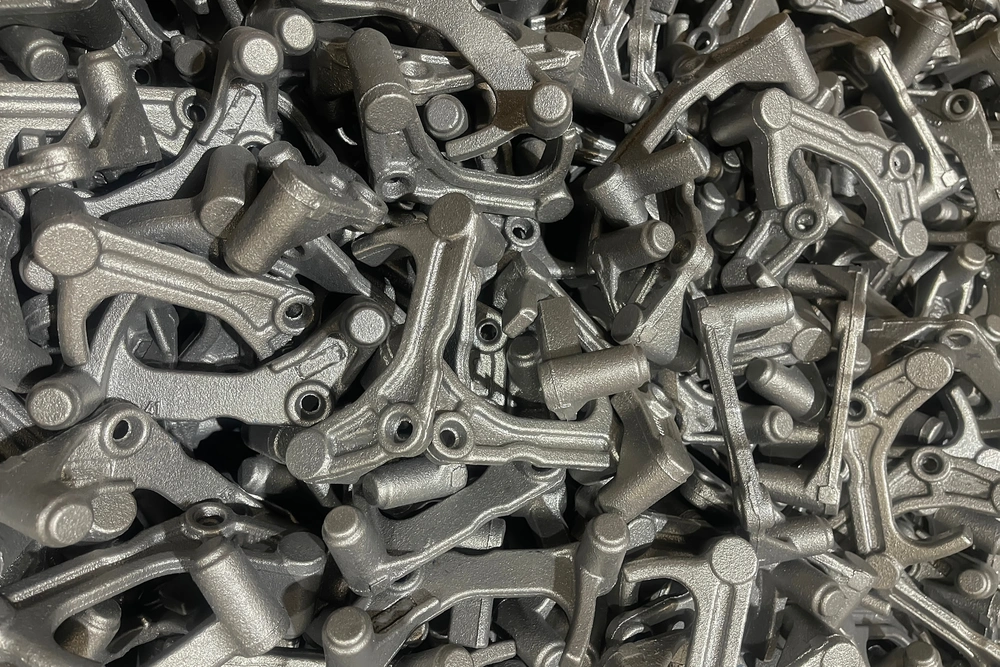

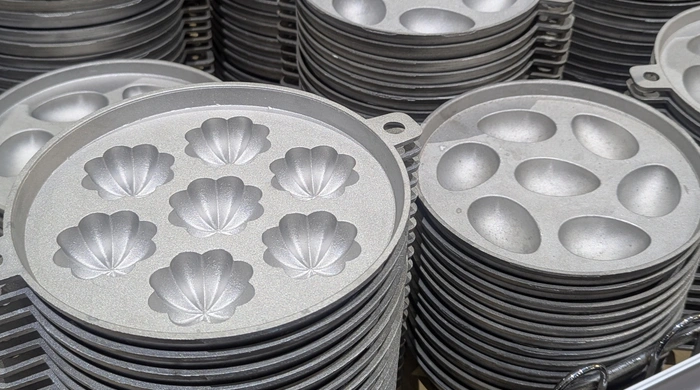

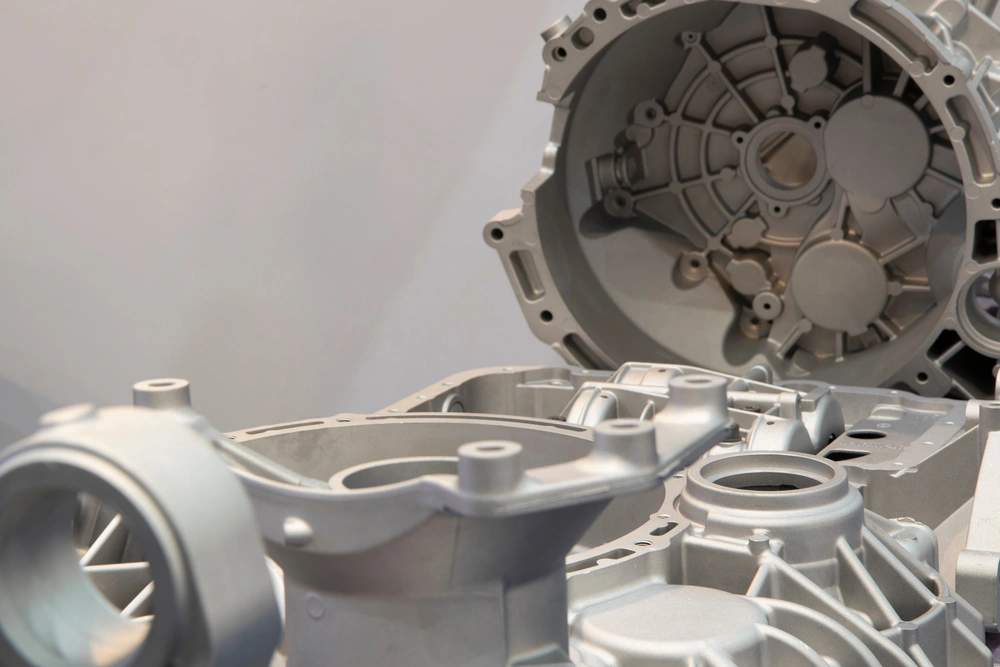

Die Casting
Die casting is a high-speed manufacturing process that involves forcing molten metal under significant pressure into reusable steel molds, known as dies, to create complex and highly accurate parts.
Because it can produce thousands of identical components with smooth surface finishes and minimal need for secondary machining, its best use cases are found in large-scale production for the automotive industry and industrial hardware where durability and high-volume efficiency are paramount.

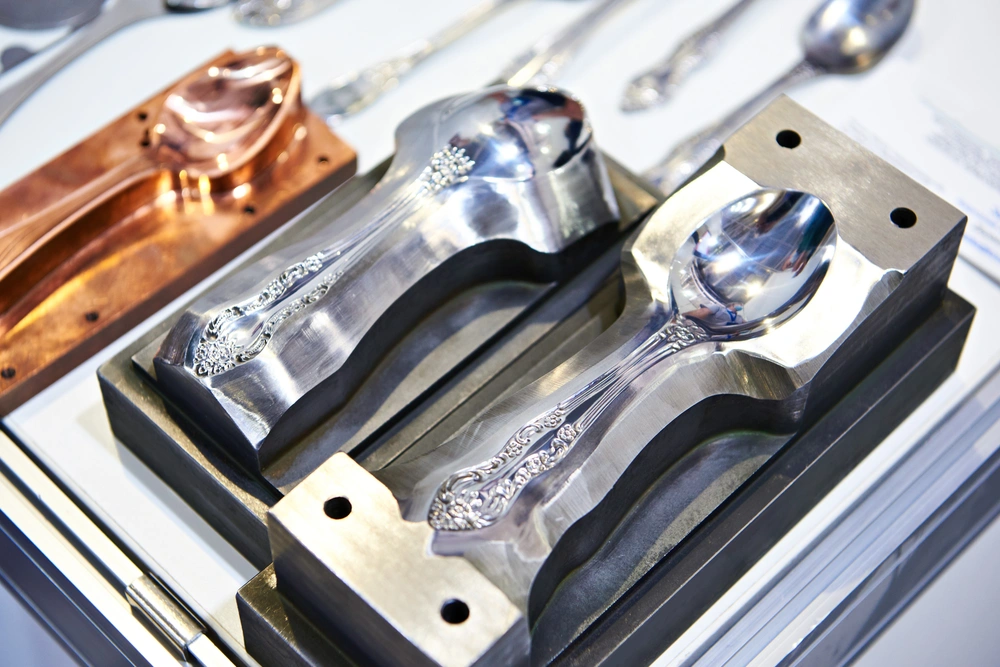

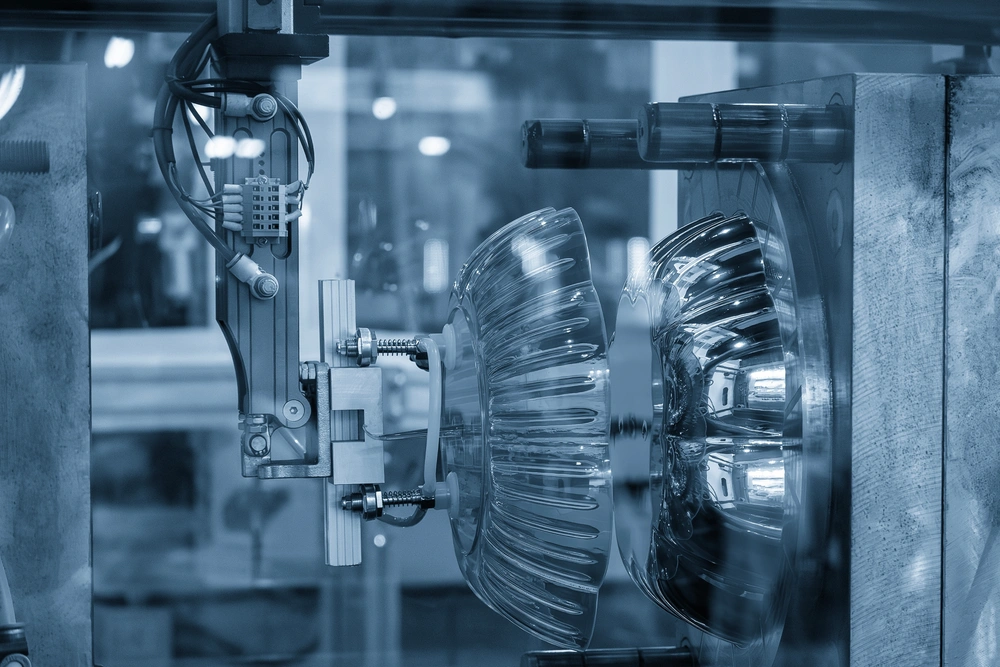

Injection Molding
Injection molding is a highly efficient manufacturing process that involves injecting molten thermoplastic or thermoset materials into a custom-machined metal mold at high pressure. Once the material cools and solidifies, the mold opens to eject a finished part, repeating the cycle in seconds.
It is the gold standard for large-scale production runs of identical parts, where the high initial cost of tooling is quickly offset by the efficiency of millions of cycles.

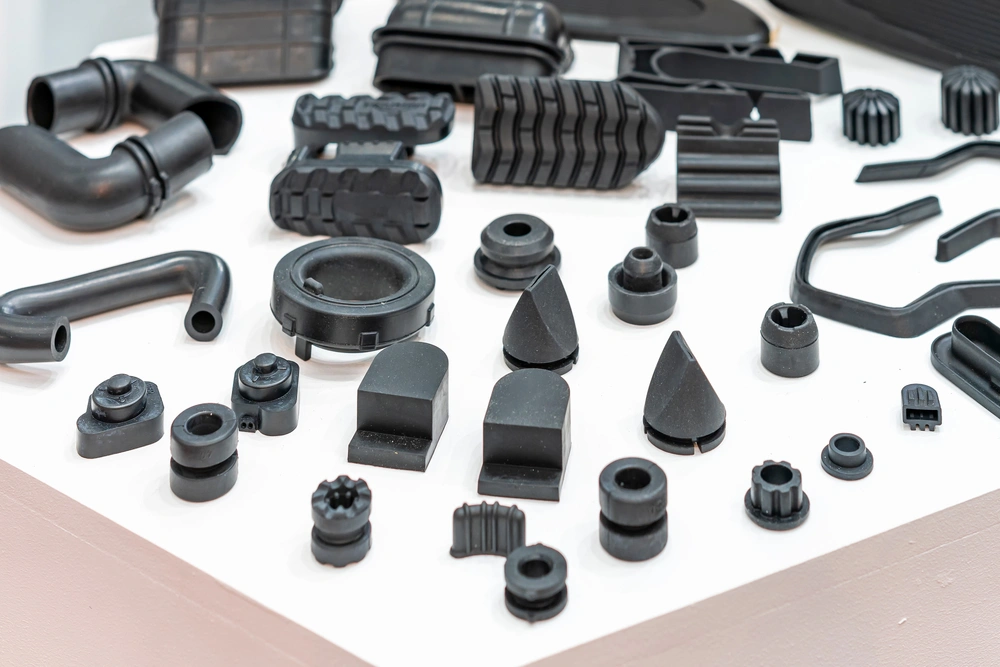

Compression Molding
Compression molding is a high-pressure forming process where a pre-measured amount of molding material is placed into an open, heated mold cavity. The mold is then closed, and a hydraulic press applies intense pressure, forcing the material to conform to the shape of the die while heat triggers a chemical curing process.
Because it has the ability to process heavy-duty, fiber-reinforced materials that might be too viscous for injection molding, it is ideal for producing large, high-strength components, where structural integrity and material thickness are critical.
Casting & Molding Offer...
- Specialized Materials
- Textures & Specialized Finishes in Molding
- Complex Internal & External Geometries
- High Repeatability

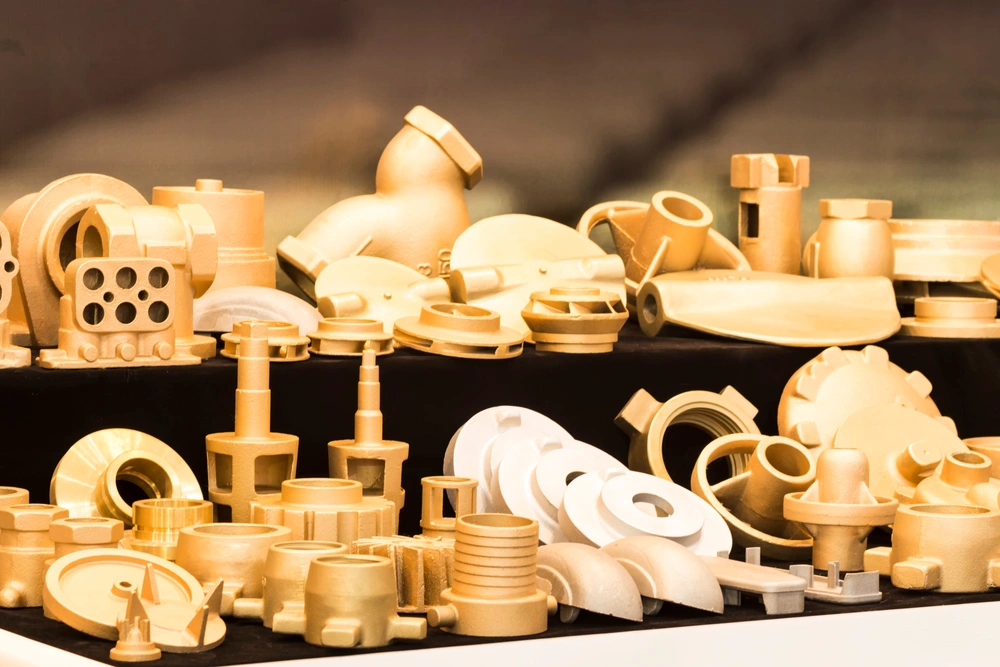

Specialized Materials
Casting and molding technologies offer an expansive palette of materials that are often difficult or impossible to process effectively using other manufacturing methods. Casting and molding remain the primary methods for accessing high-performance thermoset plastics, specialized elastomers, and liquid silicone rubbers (LSR).
These materials are prized for their unique chemical structures, which provide superior heat resistance and flexibility that thermoplastic filaments or solid metal billets cannot replicate.
In the realm of metalwork, casting allows for the use of specialized alloys that are either too hard or too brittle to be cost-effectively machined or fabricated from sheet stock. Materials like white cast iron for extreme abrasion resistance or specific magnesium alloys are frequently shaped through die or investment casting.
Furthermore, molding processes excel at handling fiber-reinforced composites with high glass or carbon content. These reinforcements can be distributed uniformly through compression or injection molding to create parts with isotropic strength.

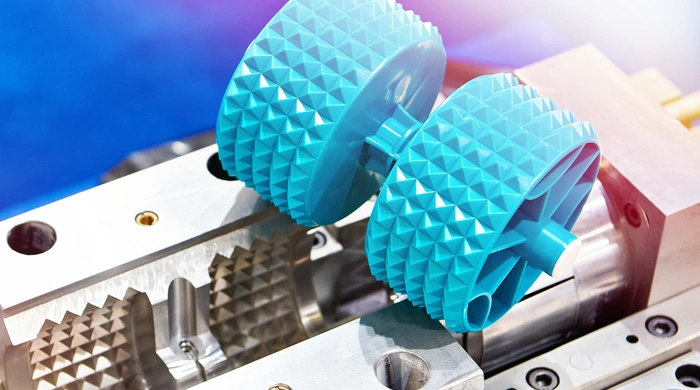

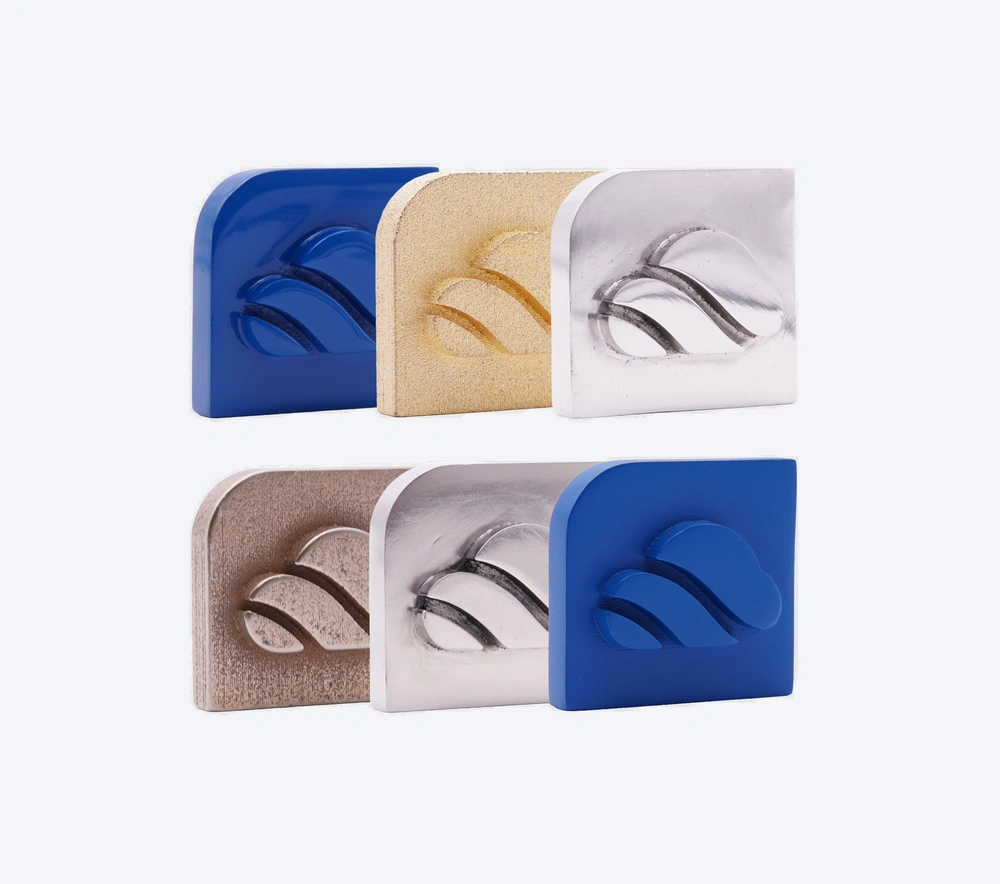

Textures & Specialized Finishes in Molding
Molding technologies provide an unparalleled level of control over surface textures, allowing for the direct integration of complex patterns into the tooling itself. Molding can produce parts with perfectly uniform textures across complex, curved geometries, which is particularly vital for achieving VDI 3400 textures – the international standard for spark erosion finishes – ranging from a fine matte to a heavy, rough grit.
By applying these textures directly to the mold cavity, manufacturers can ensure that every produced part has a consistent tactile feel that enhances grip and masks minor scratches or sink marks.
Beyond basic matte finishes, molding excels in the application of specialized MT (Mold-Tech) graining and high-gloss SPI (Society of the Plastics Industry) finishes. MT graining allows designers to simulate natural surfaces like leather, wood grain, or sophisticated geometric patterns. On the other hand, the SPI A-1 diamond buff finish can produce a mirror-like, optically clear surface.
These finishes are integrated into the mold steel, ensuring that even the most intricate optical lenses or high-gloss decorative housings come out of the machine ready for assembly with no secondary finishing required.
Complex Internal & External Geometries
Casting and molding offer design freedom because they aren't limited by where a drill bit can reach. Molding uses cores and sliding inserts – temporary pieces placed inside the mold – to create hollow centers, internal tunnels, and complex "hidden" features.
For example, parts that have winding internal paths would be nearly impossible to carve out of a solid block. With casting, you can create these paths in a single step using sand or ceramic cores that are simply shaken out once the metal hardens.
By making the part in one piece rather than welding several smaller pieces together, the result is a component that is lighter, stronger, and less likely to leak, all while skipping the high labor costs of complex machining.
High Repeatability
Molding and casting are highly suitable for mass production; because parts are formed in a rigid, fixed cavity, they offer incredible consistency.
Once the mold or die is finalized and the process parameters – such as pressure, temperature, and cooling time – are calibrated, the machine can produce thousands of identical units with negligible variance.
For industries like medical device manufacturing or automotive engineering, this ensures that every single component will fit perfectly into a larger assembly, maintaining strict tolerance bands from the first shot to the last.
Casting & Molding or CNC Machining?
Casting and molding and CNC machining offer different advantages that can address your project's goals and budget.
Casting & Molding
Casting and molding include vacuum casting, die casting, injection molding, and compression molding.
- Lower cost at high volumeOnce you pay for the initial mold (the "tooling"), the cost per part drops significantly. For thousands or millions of units, it is cheaper than paying for machine time for every single piece.
- Complex internal cavitiesBy using "cores" (temporary inserts), casting can create hollow insides or winding internal tunnels that a drill bit simply cannot reach.
- Consistent repeatabilityBecause every part comes from the exact same cavity, the millionth part will be a near-perfect twin of the first. This is crucial for high-speed assembly lines.
- Reduced material wasteCasting and molding use only the material needed for the part, making them more efficient for expensive materials at scale.
- Built-in texturesYou can etch a texture directly into the mold. Every part pops out with that texture finished and ready.
CNC Machining
Milling, turning, or electrical discharge machining (EDM) are subtractive manufacturing processes.
- Tight tolerancesCNC can consistently hit tolerances as tight as approximately 0.025 mm, which is essential for mating parts in engines or aerospace components.
- Low-volume production and prototypingSince CNC doesn't require custom molds, it is cheaper for producing 1 to 50 parts.
- Surface finishesMachining can achieve mirror-like finishes or specific textures directly on the part.
- No draft angles requiredMolding requires "draft" (slanted sides) so the part can slide out of the tool. CNC can cut perfectly vertical walls and 90-degree angles that would be impossible to "pop out" of a mold.
- Material flexibilityYou can machine almost any solid material, including high-strength alloys that are difficult to melt or flow into a mold without degrading their properties.
Why Choose Casting & Molding
Complex Geometries
Casting processes can create internal and external geometries that are otherwise impossible to produce.
Large Scale Production
Casting and molding provide a streamlined workflow that ensures high and consistent replicability.
Textures & Finishes
Textures and special finishes can be etched directly into the mold, guaranteeing uniform results on all parts.
Every Project Is Unique
That's why we're proud to offer casting and molding, sheet metal fabrication, CNC machining, and 3D printing services. We're here to guide you toward optimal outcomes, in terms of speed, cost, and quality, ensuring your vision is realized in its best possible form.
Why Craftcloud
Expertise & Experience
No matter the intricacy of your project, at Craftcloud, we are primed to assist you down to the smallest detail. Every inquiry is met with a commitment to make sure your vision is realized to its fullest potential.
Transparent Pricing
No hidden costs. You get a competitive quote upfront, ensuring budget clarity from the start.
Quick Turnaround
Time is money. We pride ourselves on not just the quality but the speed of our service, ensuring you meet your deadlines.
Dedicated Support & Success Team
Our commitment doesn’t end post-production. We're with you every step of the way, ensuring your experience is smooth and satisfying.
Let Us Help You Make Your Project a Reality!
Reach out to our sales team today for a personalized casting or molding quote. We provide full transparency and support in getting you the best offer from our manufacturing partners.
